Code Calculators Screen Shots

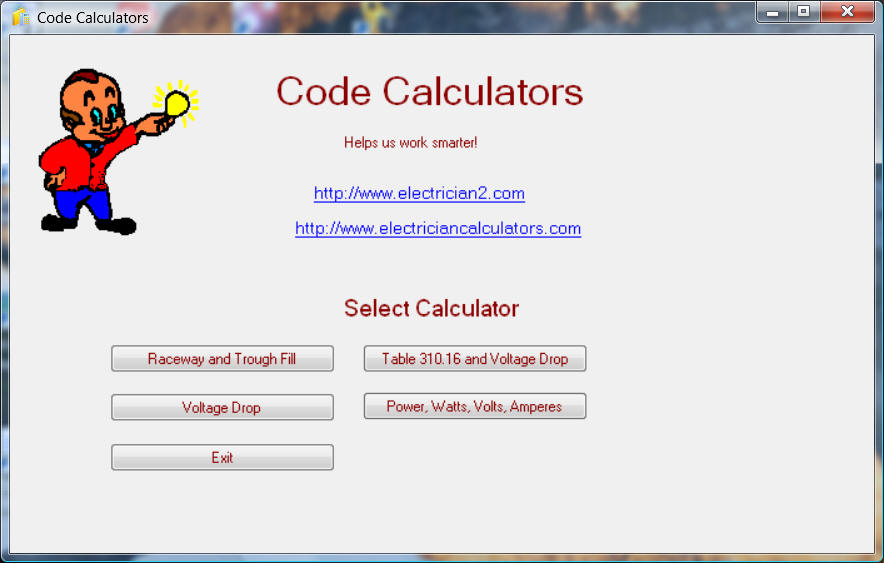

Main Menu

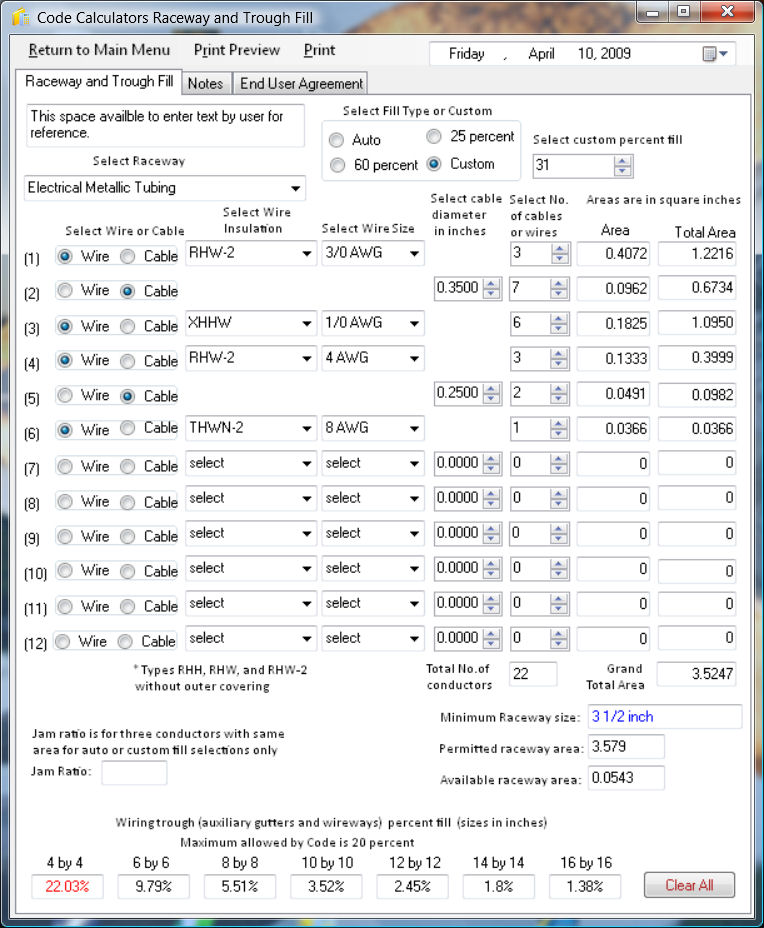

Raceway and Trough Fill

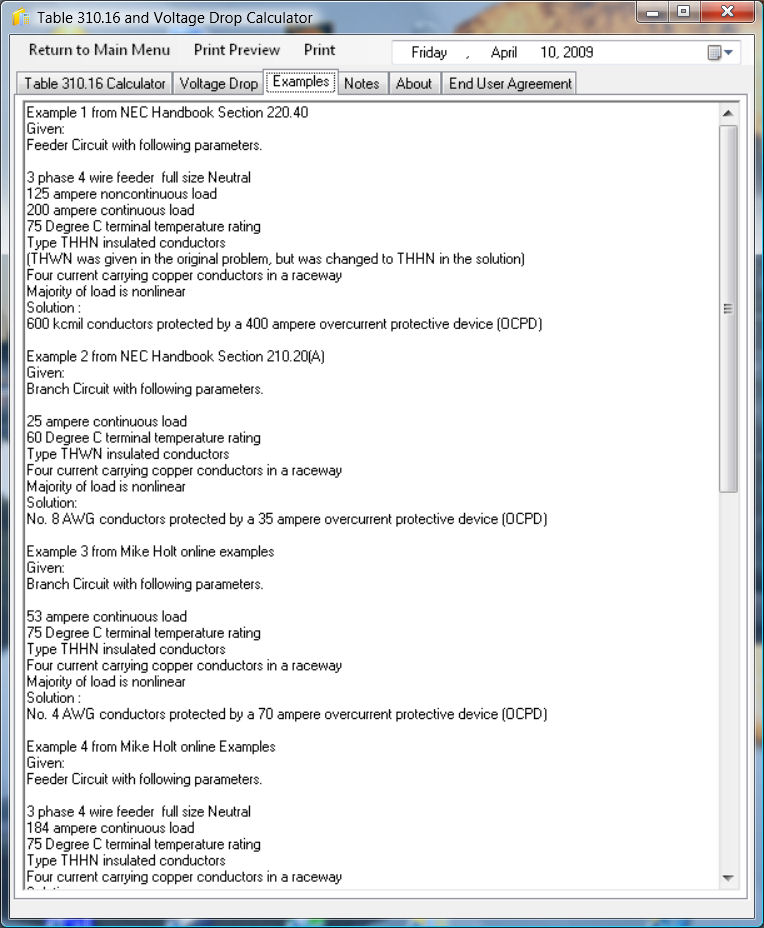

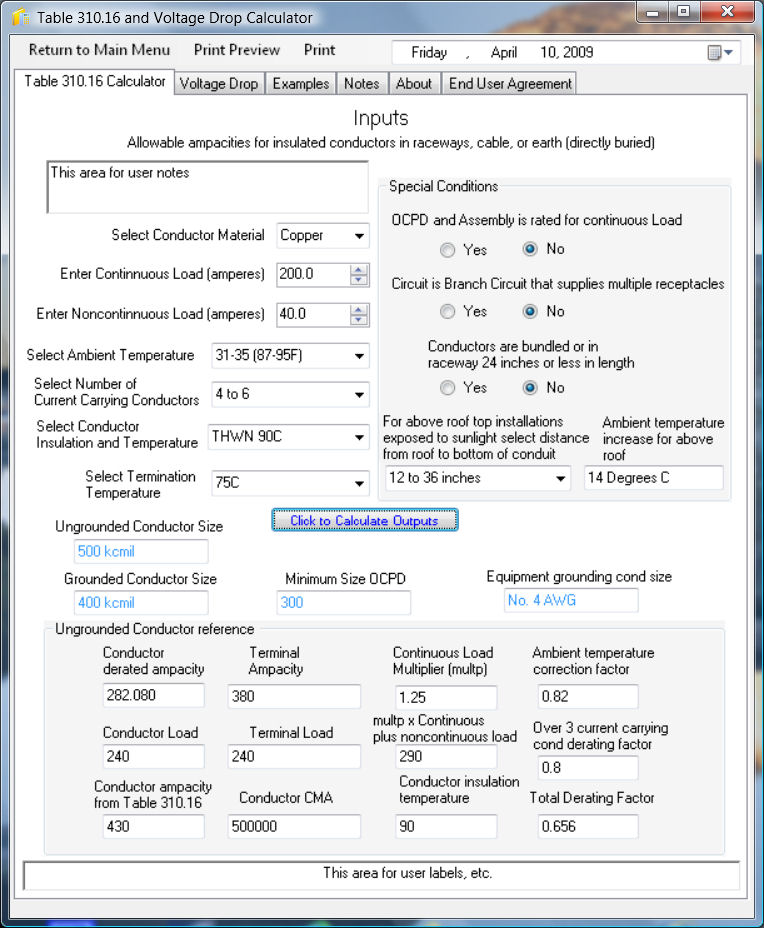

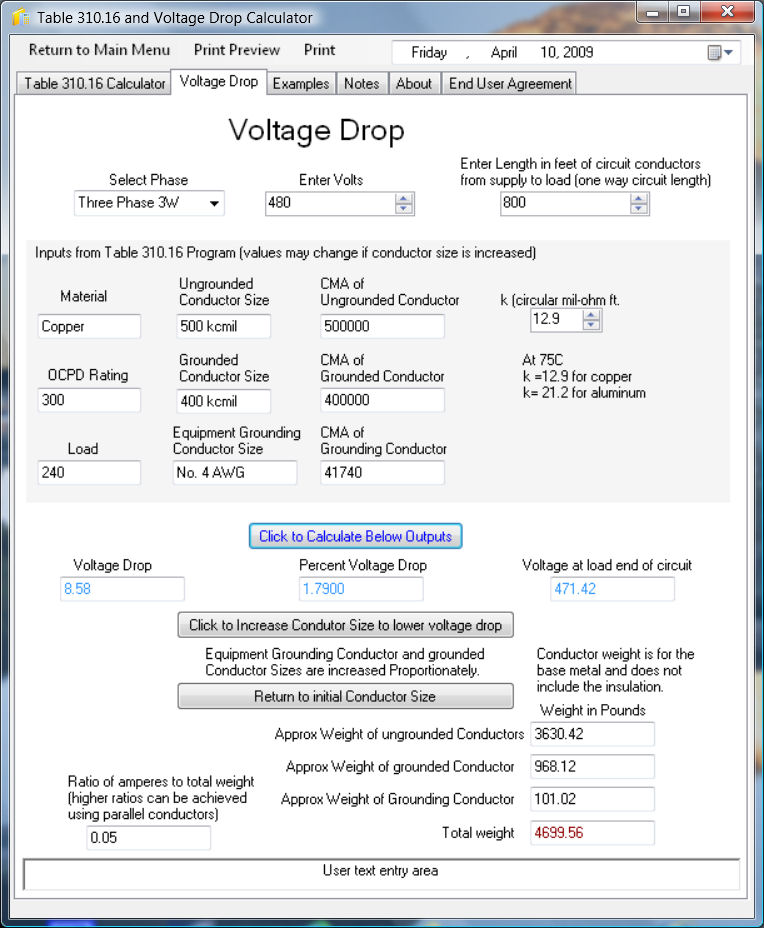

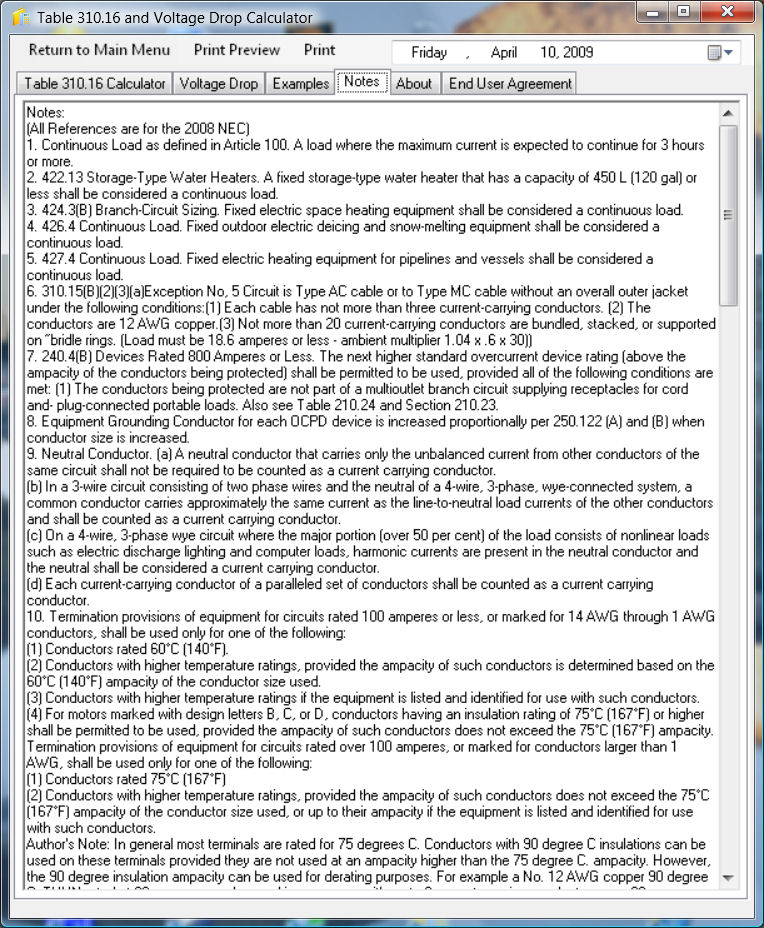

Table 310.16 and Voltage Drop



Links

   Description

Click here to download and install
Code Calculators

This program requires that Microsoft.NET Framework 3.5 sp1 be installed on your computer to run.
If you are using Vista or XP and have updated Windows you should find Framework 3.5 at
C:\Windows\Microsoft.NET\Framework\         Click here to download and install .NET Framework

Code Calculators - Absolutely free
no adware, no gimmicks, no hassle.

Includes NEC Table 310.16 and voltage drop, Raceway and Trough Fill, and Voltage Drop applications.  New NEC Table 310.16 conductor size and voltage drop application added on 3/21/2009.  Raceway fill application for cables AND wires.  Auto, 25 percent, 60 percent and custom fill for any percent fill, compact conductors and all insulations and sizes from Tables 5 , 5a and 8 are included.  This application also does trough fill for Auxiliary Gutters and Wireways from 4 x 4 inches to 16 x 16 inches.  This is a dynamic calculator that changes output values as inputs are varied.  The voltage drop application from below is also included.

These are not a web page calculators.  These are Visual Basic Click Once applications that run by themselves in windows. Installation includes a link in the Program Start menu and installs a desktop icon.  This is a Click Once Visual  Basic  application with full uninstall features using the control panel, add or remove programs, uninstall.  This application can be automatically updated as new programs are added to the suite.
